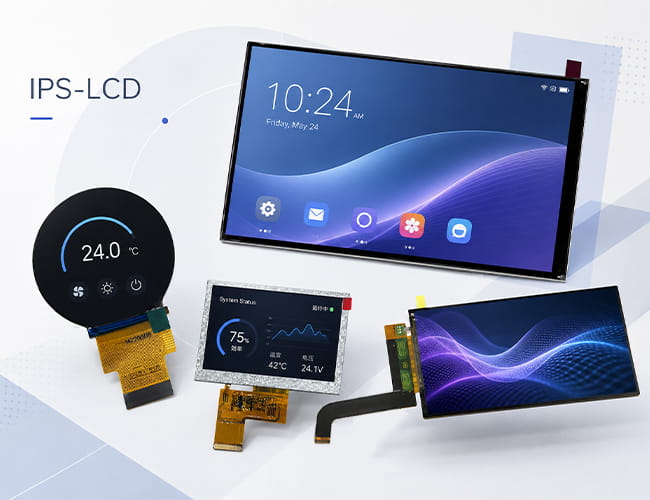

ips-lcd display panel
.jpg)
What Does “IPS LCD Screen” Mean?

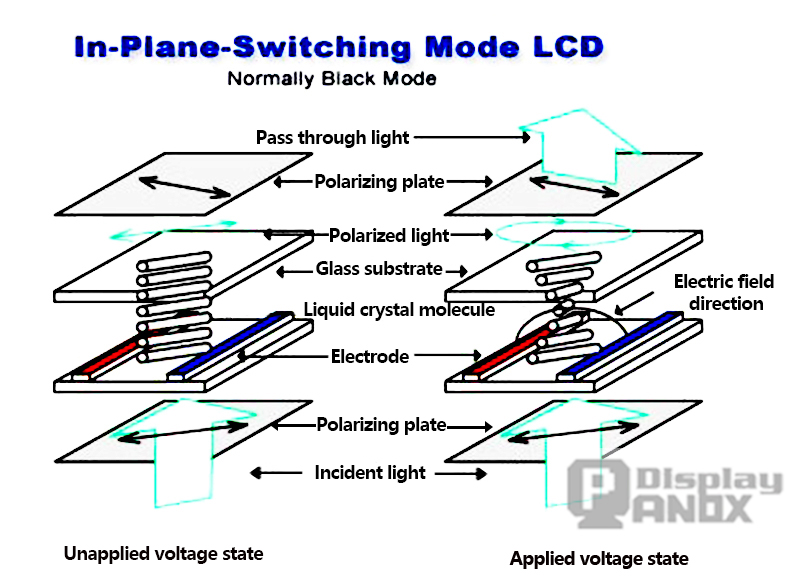

An IPS LCD screen is a type of TFT-LCD display designed to provide stable image quality from different viewing directions. IPS stands for In-Plane Switching, a liquid crystal technology that helps reduce color shift and contrast changes when the screen is viewed from the side, above, or below.
Unlike OLED or AMOLED displays, an IPS LCD still uses a backlight. Its main advantage is not self-emission, but reliable full-color display performance, mature production, wide size availability, and strong compatibility with embedded systems.
-
Size(inch)
- 0.39~1.0
- 1.0~1.9
- 2.0~2.9
- 3.0~3.9
- 4.0~4.9
- 5.0~5.9
- 6.0~6.9
- 7.0~7.9
- 8.0~9.9
- 10~20
-
Interface
- I2C
- SPI
- Parallal
- MCU
- CPU
- RGB
- MIPI
- LVDS
- eDP
- HDMI
-
Display Color
- Monochrome
- Double Color
- Full Color
-
Orientation
- Landscape
- Portrait
| Model | Size | Display Type | Resolution | Interface | Display Brand | Image | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2 inch Round TFT LCD Module
|
2.1 | a-Si TFT-LCD | 480 x 480 | SPI,RGB | Panox Display |
|
||||||||||
2.9 inch TFT-LCD 120 Hz For VR
|
2.9 | TFT-LCD | 1440(RGB)×1440 | MIPI | Sharp |
|
||||||||||
4.0 inch Square LCD Display 480x480 for Smart Home
|
4.0 inch | TFT-LCD | 480x480 | RGB | Panox Display |
|
||||||||||
4.3 inch 800x480 IPS-TFT Industrial LCD Display Parallel RGB 24 Bits
|
4.3 | TFT-LCD, IPS | 800x480 | RGB | BOE |
|
||||||||||
5.5 inch LCD For 3D Printing (ANYCUBIC Photon S/Wanhao D7)
|
5.5 | TFT-LCD | 1440(RGB)×2560 , Quad-HD | MIPI | Sharp |
|
||||||||||
6.8 inch long strip LCD IPS TFT
|
6.8 | TFT-LCD | 480 x 1280 | MIPI | Tianma |
|
||||||||||
7 inch Raspberry Pi LCD Display Touch Screen
|
7.0 | TFT-LCD | 1024 x 600 | HDMI | Panox Display |
|
||||||||||
7.0 inch LCD For Tablet
|
7.0 | TFT-LCD | 1200(RGB)×1920 , WUXGA | MIPI | JDI |
|
||||||||||
8 inch IPS TFT LCD 1024X768 LVDS Interface
|
8.0 inch | TFT-LCD | 1024(RGB)×768 [XGA] 160PPI | LVDS | Chimei Innolux |
|
||||||||||
8.9 inch TFT-LCD IPS For Tablet/3D Printing
|
8.9 | TFT-LCD | 2560(RGB)×1600 , WQXGA | MIPI | JDI |
|
||||||||||
9.7 inch TFT-LCD 2048x1536 eDP Interface
|
9.7 | a-Si TFT-LCD, LCM | 2048(RGB)×1536, QXGA 264PPI | eDP | LG |
|
||||||||||
10.1 inch LCD 2K Resolution For Laptop/3D printing HDMI Board
|
10.1 | TFT-LCD | 2560(RGB)×1600 , WQXGA | MIPI | Sharp |
|
.jpg)
Exploring the Advantages of IPS Screen Panels
IPS (In-Plane Switching) screen panels are renowned for their superior display quality and exceptional performance. Unlike traditional TN (Twisted Nematic) or VA (Vertical Alignment) panels, IPS technology uses liquid crystals aligned horizontally, allowing for precise light control and remarkable brightness. This unique configuration ensures that the screen delivers vibrant colors, sharp images, and high contrast, making it the ideal choice for high-end devices like smartphones, monitors, and TVs. IPS panels are widely used in both LCD displays and OLED monitor, combining vivid image reproduction with stable visual performance, even under challenging lighting conditions.Unmatched Viewing Angles and Color Accuracy
One of the most significant advantages of IPS panels is their wide viewing angles. With a typical viewing range of up to 178 degrees, IPS displays maintain consistent color accuracy and clarity even when viewed from the side. This feature is especially beneficial for LCD for computer monitor, public information displays, and other shared viewing environments. Additionally, IPS panels are known for their exceptional color reproduction, offering high contrast ratios and deep black levels. Professionals in industries like graphic design, photography, and healthcare rely on IPS technology for its outstanding precision. Compared to standard LCD panels and even certain OLED technologies, IPS displays ensure more stable color fidelity across extended periods of use.Durability and Longevity
IPS panels are not just about visual excellence; they also deliver durability and reliability. The resin coating on many IPS LCD screens adds extra protection against scratches, helping to maintain a pristine appearance over time. This robust design makes IPS technology ideal for heavy daily usage, whether in gaming setups, professional studios, or public-facing digital signage. As OLED technology continues to evolve, IPS panels maintain their position as a reliable choice for users who prioritize consistent performance and long-lasting quality.Why IPS LCD Matters for Display Products
IPS LCD matters because many screens are used in real environments where users do not always look straight at the display. Industrial operators, drivers, technicians, customers, and handheld device users often view the screen from changing angles.
A good IPS LCD display panel can help keep text, icons, images, warning colors, and UI elements easier to read. This makes IPS-LCD a practical choice for products that need stable visual performance, long operating life, and reliable integration.
Common Applications for IPS LCD Display Panels
IPS LCD screens are widely used in industrial HMI, smart home control panels, vehicle displays, portable devices, Raspberry Pi display kits, testing instruments, security terminals, round control interfaces, long strip displays, and tablet-style products.
Different applications need different display solutions. A compact industrial controller may need a small RGB IPS-TFT LCD, while a tablet or embedded monitor may need a higher-resolution MIPI or eDP display. A round display can support dial-style control interfaces, and a long strip LCD can fit narrow spaces such as dashboards, equipment panels, or custom information bars.
How to Choose the Right IPS LCD Screen
Choosing an IPS LCD screen should start from the actual product environment. Important factors include screen size, resolution, interface type, brightness, viewing angle, operating temperature, touch panel structure, cover glass, connector direction, and controller board support.
For embedded projects, interface compatibility is especially important. Common IPS-LCD interface options include RGB, MIPI, LVDS, eDP, and HDMI controller board solutions. The right choice depends on the host system, PCB design, UI complexity, and product development stage.
Explore IPS-LCD Display Solutions from PanoxDisplay
PanoxDisplay provides IPS-LCD display panels for industrial control, smart home, tablet, vehicle, Raspberry Pi, round display, long strip display, 3D printing, and other embedded applications.
Browse our IPS-LCD display selection to find suitable TFT-LCD modules, touch screen displays, high-resolution LCD panels, controller board solutions, and custom display options for your next project.
