on-cell display panel
When Samsung launched the super AMOLED in 2010, it used on-cell technology.

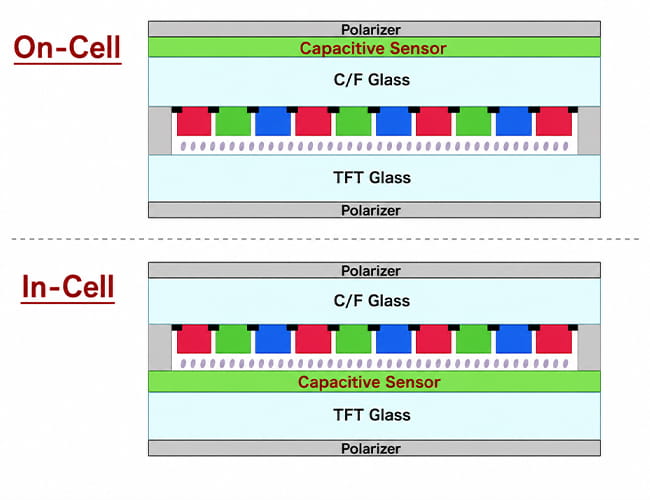

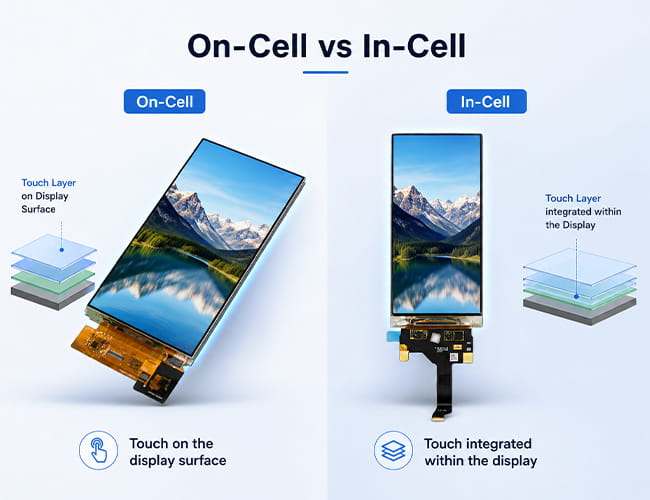

On-Cell Touch vs In-Cell Touch
In fact, both On-cell technology and In-cell technology are embedded touch panels. The two technologies have slightly different name, but the principle is similar, both are with the touch screen embedded in the display module.Because the On-cell technology only needs to form a simple transparent electrode pattern between the color filter substrate and the polarizing board, it is easier to produce compared to In-cell.
In addition, the area of the effective display pixels will not decrease, and almost no deterioration of the image quality.
Compared with in-cell, On-cell has a more touch layer, the thickness will increase a little. In-cell embedded touch sensor in the pixel, display area of pixels will reduce, which will lead to picture quality deterioration a little.
Filters
Configure Your Item Here-
Size(inch)
- 0.39~1.0
- 1.0~1.9
- 2.0~2.9
- 3.0~3.9
- 4.0~4.9
- 5.0~5.9
- 6.0~6.9
- 7.0~7.9
- 8.0~9.9
- 10~20
-
Interface
- I2C
- SPI
- Parallal
- MCU
- CPU
- RGB
- MIPI
- LVDS
- eDP
- HDMI
-
Display Color
- Monochrome
- Double Color
- Full Color
-
Orientation
- Landscape
- Portrait
#VR
#AR
#90 Hz
#Wearable
#Cellphone
#3D printing
#Long strip
#Handheld
Tips
What`s the different between OLED AMOLED PMOLED?
Top 10 OLED manufactuers.
Top 10 LCD manufactuers.
Do you need customized Touch Panel?
The procedures to make customized Controller board.
How OLED Works?
How LCD Works?
Tips to Drive LCD?
How to drive OLED?
What is MIPI interface? How it works?
What is SPI Interface? How it works?
Precautions For Use OLED ?
| Model | Size | Display Type | Resolution | Interface | Display Brand | Image | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5.5 inch OLED FHD On-cell PACP TP For Cellphone
|
5.5 | AMOLED | 1080(RGB)×1920 | MIPI | AUO |
|
||||||||||
5.5 inch OLED FHD Thin On-cell PACP TP For Cellphone
|
5.5 | AMOLED | 1080(RG/BG)×1920 [FHD] 327PPI | MIPI | BOE |
|
||||||||||
5.99 inch Flexible OLED On-Cell PACP For Cellphone
|
5.99 inch | AMOLED | 1080(RGB)×2160 329PPI | MIPI | BOE |
|
||||||||||
6.01 inch OLED On-cell PACP TP For Cellphone
|
6.01 | AMOLED | 1080(RGB)×2160 | MIPI | Tianma |
|
||||||||||
7 inch AMOLED OLED 1920X1080 Mipi
|
7 inch | OLED , AM-OLED | 1080(RGB)×1920, FHD, 315PPI | MIPI | Panox Display |
|
||||||||||
7.8 inch Flexible Full Color OLED 1920x1440 MIPI
|
7.8 inch | AMOLED | 1440 x 1920 | MIPI | Royole |
|
||||||||||
10.5 inch OLED 2K Resolution For Laptop
|
10.5 inch | AMOLED | 2560(RGB)×1600 [WQXGA] 287PPI | MIPI | Samsung |
|
It`s just a beginning to get display panels from us, then clients need to solve cover glass/touch panel, driving board, connectors on PCB.Fortunately Panox Display provide complete display solutions.
Connectors
Panox Display provides free connectors for clients who purchase more than five products from us. Our product range includes connectors from Molex, Kyocera, AXE, AXG, JAE, Hiros, and more.
Cover Glass/Touch Panels
Panox Display provides a customized cover glass/touch panel service. We supply cover glass from Gorilla, AGC, and Panda, which all have excellent optical performance. We also supply driver ICs from Goodix and Focaltech.
Controller/Driver Boards
If your applications are directly connected to a PC, a cellphone, or Raspberry Pi, and you have enough space to insert a board to input video, Panox Display can provide customized Controller/Driver boards with input connections for VGA, HDMI, DVI, DP, Type-C video input, MIPI, RGB, LVDS, and eDP.
The functions of our boards include, but are not limited to, adjustment of brightness, sound output, touch interface, extra data transmission, and gyroscope.
