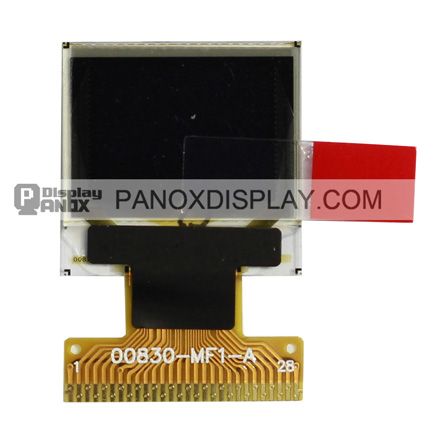

0.66 inch Graphic OLED Display White On Black For E-cigarette
For a few displays with controllor board, it's better to buy from our online store. For development and batch order, or technical specification including datasheet, circuit schematics, initial code, customized cover glass, touch panel, please kindly contact us
Shop on Online Store
ModelNumber:PDO066W6448W01
This is a 0.66 OLED display module with 64 x 48 pixel, SSD1306, I2C interface
Characteristics of this display module are high brightness,self-emission, high contrast ratio, slim/thin outline, wide viewingangle, wide temperature range and low power consumption
This is a 0.66 OLED display module with 64 x 48 pixel, SSD1306, I2C interface
Characteristics of this display module are high brightness,self-emission, high contrast ratio, slim/thin outline, wide viewingangle, wide temperature range and low power consumption
Datasheet Download
| File Name | Description | Language | Tags | Update Time | Document Size | Download |
|---|
| Model Name | PDO066W6448W01 |
|---|
| Display Type | PMOLED |
|---|
| Display Brand | Visonox/Univision |
|---|
| Interface | I2C,SPI |
|---|
| Screen Size | 0.66 |
|---|
| Orientation | Landscape |
|---|
| Display Color | Monochrome |
|---|
| Manufacturer | Visonox/Univision |
|---|
| Resolution | 64x48 |
|---|
| Driver IC | Built-in COG SSD1306 |
|---|
| Consumption | - |
|---|
| Active Area (mm) | 13.42 x 10.06 mm |
|---|
| Bezel Area (mm) | 18.55 x 27.9 x 1.28 mm |
|---|
| Luminance | 100 cd/m² (Typ.) |
|---|
| Viewing Angle | 80/80/80/80(Min) |
|---|
| Color Depth | Mono(White,Blue) |
|---|
| Mass | 0.99g (Typ.) |
|---|
| Refresh Rate | - |
|---|
| Signal Type | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , FPC , 28 pins |
|---|
| Voltage Supply | 2.8/7.25V (Typ.)(VDD/VCC) |
|---|
| Operating Temp | -40 ~ 70 °C |
|---|
| Storage Temp | -40 ~ 85 °C |
|---|
| Aspect Ratio | 4:3 |
|---|
| Screen Type | PM-OLED, OLED |
|---|
| Arrangement | Rectangle |
|---|
| Outline (mm) | - |
|---|
| Treatment | - |
|---|
| Contrast Ratio | 10000:1 (Typ.) (TM) |
|---|
| Response | 0.01 (Typ.) ms |
|---|
| Work Mode | - |
|---|
| Backlight | self , 10K hours |
|---|
| Used For | Medical Equipment, e-cigarette |
|---|
| Touch Panel | none |
|---|
| Outdoor Visibility | Sunlight readable |
|---|
