Flexible Display

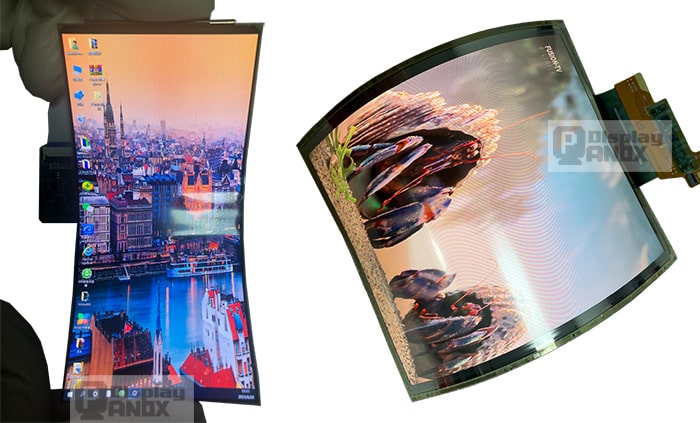

Flexible display (Curved OLED Display, Bendable OLED Display,Foldable OLED Display, Rollable OLED Display)
are an exciting innovation in display technology that allows screens to be bent, curved, or even rolled up without damaging the display or affecting its functionality. These displays are made possible through the use of flexible substrates and materials like OLED (Organic Light Emitting Diode) or AMOLED (Active-Matrix Organic Light Emitting Diode) technology.

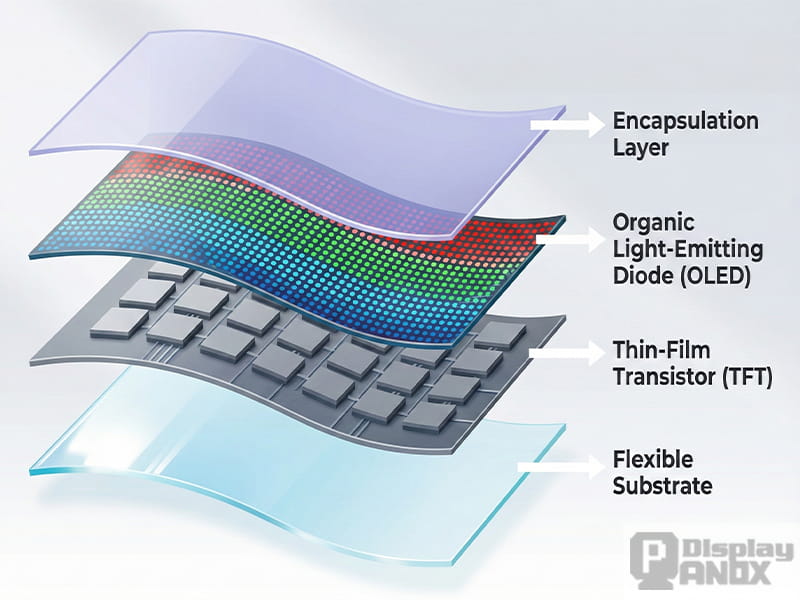

Materials: Flexible displays are typically made using materials such as plastic instead of glass. These materials are bendable and allow the display to flex without breaking.
OLED and AMOLED Technology: Organic Light Emitting Diode (OLED) and Active-Matrix Organic Light Emitting Diode (AMOLED) technologies are commonly used in flexible displays. OLEDs emit light when an electric current is applied, and they don't require a backlight, making them well-suited for flexible displays.
Applications: Flexible displays have various applications across different industries. In consumer electronics, they can be used in smartphones, tablets, and wearable devices to create devices with curved or foldable screens. In automotive displays, they can be integrated into dashboards or instrument panels. Flexible displays also have potential uses in signage, e-readers, and even clothing.
Advantages: One of the primary advantages of flexible displays is their durability. Because they can bend and flex, they are less likely to shatter or crack compared to traditional rigid displays. Flexible displays also offer design flexibility, allowing for innovative form factors and new product designs.
Filters
Configure Your Item Here-
Size(inch)
- 0.39~1.0
- 1.0~1.9
- 2.0~2.9
- 3.0~3.9
- 4.0~4.9
- 5.0~5.9
- 6.0~6.9
- 7.0~7.9
- 8.0~9.9
- 10~20
-
Interface
- I2C
- SPI
- Parallal
- MCU
- CPU
- RGB
- MIPI
- LVDS
- eDP
- HDMI
-
Display Color
- Monochrome
- Double Color
- Full Color
-
Orientation
- Landscape
- Portrait
#VR
#AR
#90 Hz
#Wearable
#Cellphone
#3D printing
#Long strip
#Handheld
Tips
What`s the different between OLED AMOLED PMOLED?
Top 10 OLED manufactuers.
Top 10 LCD manufactuers.
Do you need customized Touch Panel?
The procedures to make customized Controller board.
How OLED Works?
How LCD Works?
Tips to Drive LCD?
How to drive OLED?
What is MIPI interface? How it works?
What is SPI Interface? How it works?
Precautions For Use OLED ?
| Model | Size | Display Type | Resolution | Interface | Display Brand | Image | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1.39 inch Round/Circular OLED Flexible For Wearable Smartwatch
|
1.39 | AMOLED | 400(RGB)×400 | MIPI | Innolux |
|
||||||||||
1.5 inch Flexible OLED For Wearable Smart Watch
|
1.5 inch | AMOLED | 120(RGB)×240 180PPI | SPI,MIPI | Innolux |
|
||||||||||
1.8 inch Flexible PMOLED For Wearable Bracelet
|
1.8 | PMOLED | 160×32 | SPI | Futaba |
|
||||||||||
5.1 inch Flexible OLED On-Cell PACP For Cellphone
|
5.1 | AMOLED | 720(RGB)×1520 330PPI | MIPI | BOE |
|
||||||||||
5.99 inch Flexible OLED On-Cell PACP For Cellphone
|
5.99 inch | AMOLED | 1080(RGB)×2160 329PPI | MIPI | BOE |
|
||||||||||
6.52 inch Flexible OLED 2520x840 Touch Panel
|
6.52 inch | AM-OLED , OLED | 2520(RGB)×840 407 PPI | MIPI | CSOT |
|
||||||||||
6.78 inch Flexible AMOLED 2K for Smartphone
|
6.67 | OLED , AM-OLED | 1080*2400 | MIPI | Tianma |
|
||||||||||
7.8 inch Flexible Full Color OLED 1920x1440 MIPI
|
7.8 inch | AMOLED | 1440 x 1920 | MIPI | Royole |
|
||||||||||
8 inch Flexible/Foldable OLED
|
8.01 | AMOLED | 2480x1860 | MIPI | CSOT |
|
It`s just a beginning to get display panels from us, then clients need to solve cover glass/touch panel, driving board, connectors on PCB.Fortunately Panox Display provide complete display solutions.
Connectors
Panox Display provides free connectors for clients who purchase more than five products from us. Our product range includes connectors from Molex, Kyocera, AXE, AXG, JAE, Hiros, and more.
Cover Glass/Touch Panels
Panox Display provides a customized cover glass/touch panel service. We supply cover glass from Gorilla, AGC, and Panda, which all have excellent optical performance. We also supply driver ICs from Goodix and Focaltech.
Controller/Driver Boards
If your applications are directly connected to a PC, a cellphone, or Raspberry Pi, and you have enough space to insert a board to input video, Panox Display can provide customized Controller/Driver boards with input connections for VGA, HDMI, DVI, DP, Type-C video input, MIPI, RGB, LVDS, and eDP.
The functions of our boards include, but are not limited to, adjustment of brightness, sound output, touch interface, extra data transmission, and gyroscope.
