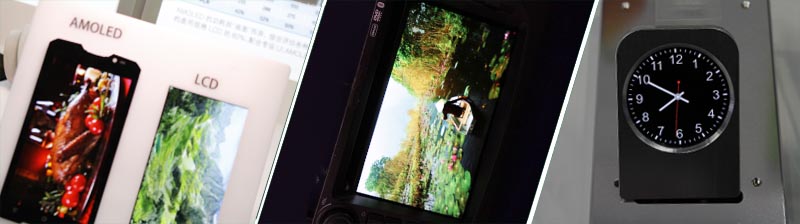

What is AM-OLED Display（Full-Color OLED）?
AM-OLED stands for Active Matrix OLED (or, in full, Active Matrix Organic Light Emitting Diodes). Compared to traditional TFT screens, AM-OLED screens offer a number of advantages, including faster response speeds, self-illumination, excellent display effects, and lower power consumption.
These advantages mean OLED displays are able to display pure black, offer higher contrasts, deliver more vivid colors, and can be used in direct sunlight, all while using relatively little power. Taken together, this explains why AMOLED displays are so well suited for use in handheld, military equipment, gaming, and sports-related devices.

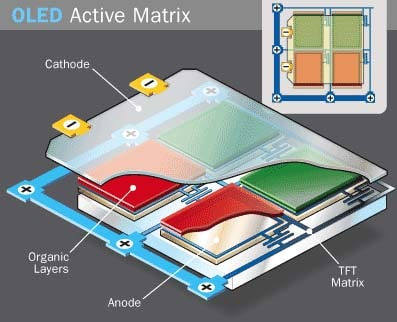

Structure of AM-OLED Display
Substrate layer: The bottom layer is made of glass or plastic and acts as a base for the entire AMOLED structure.
Anode layer: The anode layer is made up of a transparent electrode material such as indium tin oxide (ITO) that is coated on the substrate layer. It helps in providing an electric charge to the OLED material.
Organic layer: The organic layer consists of a thin layer of organic materials that are responsible for emitting light when an electric charge is applied. It is made up of various sub-layers, including a hole injection layer, a hole transport layer, an emissive layer, and an electron transport layer.
Cathode layer: The cathode layer is made up of another transparent electrode material such as aluminum or silver that is deposited on top of the organic layer. It helps in extracting electrons from the OLED material.
Thin-film transistor (TFT) layer: The TFT layer is a layer of transistors that are responsible for controlling the flow of current to the OLED material. It is located behind the organic layer and is used to individually address each pixel in the display.
Advantages of AM-OLED Display
1. Wide Color Gamut 2. High Contrast Ratio 3. Ultra-thin Thickness4. Readable Under Sun 5. Low Consumption 6. Fast Response
Wide Operation Temperature Range
OLED can work well in temperature ranges from -30℃ to +70℃. So it`s perfect for military equipment or developer in cold/hot regions which require product work in extreme weather.
Filters
Configure Your Item Here-
Size(inch)
- 0.39~1.0
- 1.0~1.9
- 2.0~2.9
- 3.0~3.9
- 4.0~4.9
- 5.0~5.9
- 6.0~6.9
- 7.0~7.9
- 8.0~9.9
- 10~20
-
Interface
- I2C
- SPI
- Parallal
- MCU
- CPU
- RGB
- MIPI
- LVDS
- eDP
- HDMI
-
Display Color
- Monochrome
- Double Color
- Full Color
-
Orientation
- Landscape
- Portrait
#VR
#AR
#90 Hz
#Wearable
#Cellphone
#3D printing
#Long strip
#Handheld
Tips
What`s the different between OLED AMOLED PMOLED?
Top 10 OLED manufactuers.
Top 10 LCD manufactuers.
Do you need customized Touch Panel?
The procedures to make customized Controller board.
How OLED Works?
How LCD Works?
Tips to Drive LCD?
How to drive OLED?
What is MIPI interface? How it works?
What is SPI Interface? How it works?
Precautions For Use OLED ?
| Model | Size | Display Type | Resolution | Interface | Display Brand | Image | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.95 inch OLED On-cell PACP TP For Wearable Bracelet
|
0.95 | AMOLED | 120(RGB)×240 | SPI,CPU,MIPI | BOE |
|
||||||||||
0.95 inch OLED On-cell PACP TP For Wearable Bracelet
|
0.95 | AMOLED | 120(RGB)×240 | SPI | Truly |
|
||||||||||
1.2 inch Round/Circular OLED For Wearable Smartwatch
|
1.2 | AMOLED | 390(RGB)×390 | SPI,MIPI | AUO |
|
||||||||||
/120qspi_round_ico.jpg)
1.2 inch Round OLED 390X390 Q-SPI 60Hz PCAP Touch Panel
|
1.2 | AM-OLED , OLED | 390x390 325 PPI | SPI,MIPI | EDO |
|
||||||||||
1.39 inch Round OLED 454x454 SPI 800 nits
|
1.39 inch | OLED , AM-OLED | 454x454 | SPI,MIPI | BOE |
|
||||||||||
1.39 inch Round/Circular OLED For Wearable Smartwatch
|
1.39 | AMOLED | 454(RGB)×454 | MIPI | BOE |
|
||||||||||
1.39 inch Round/Circular OLED For Smartwatch
|
1.39 | AMOLED | 400(RGB)×400 | MIPI | AUO/EDO |
|
||||||||||
1.41 inch OLED On-cell PACP TP For Wearable Smartwatch
|
1.41 | AMOLED | 320(RGB)×360 | MIPI | EDO/AUO |
|
||||||||||
/1_43inchOLEDico.jpg)
1.43 inch AM-OLED Full Color On-cell PCAP Touch
|
1.43 inch | OLED , AMOLED | 466*466 | SPI | Panox Display |
|
||||||||||
1.45 inch OLED For Wearable Smartwatch
|
1.45 | AMOLED | 280(RGB)×280 | MIPI | AUO |
|
||||||||||
/147oled_ico.jpg)
1.47 inch AM-OLED Full Color On-cell PCAP Touch
|
1.47 inch | OLED , AM-OLED | 194x368 | SPI | EDO |
|
||||||||||
1.6 inch OLED On-cell PACP TP 500cd brightness For Wearable
|
1.6 | AMOLED | 320(RGB)×360 300PPI | SPI,MIPI | EDO |
|
It`s just a beginning to get display panels from us, then clients need to solve cover glass/touch panel, driving board, connectors on PCB.Fortunately Panox Display provide complete display solutions.
Connectors
Panox Display provides free connectors for clients who purchase more than five products from us. Our product range includes connectors from Molex, Kyocera, AXE, AXG, JAE, Hiros, and more.
Cover Glass/Touch Panels
Panox Display provides a customized cover glass/touch panel service. We supply cover glass from Gorilla, AGC, and Panda, which all have excellent optical performance. We also supply driver ICs from Goodix and Focaltech.
Controller/Driver Boards
If your applications are directly connected to a PC, a cellphone, or Raspberry Pi, and you have enough space to insert a board to input video, Panox Display can provide customized Controller/Driver boards with input connections for VGA, HDMI, DVI, DP, Type-C video input, MIPI, RGB, LVDS, and eDP.
The functions of our boards include, but are not limited to, adjustment of brightness, sound output, touch interface, extra data transmission, and gyroscope.
